RoboHydra server tutorial

RoboHydra is an HTTP server designed to help you develop and test clients of client-server applications. You can start an empty RoboHydra server by typing (the -n tells RoboHydra to not read any configuration file):

robohydra -n

Because it’s empty it will return 404 for every request, except for the admin interface, which is always available at /robohydra-admin. You will find this admin interface handy to understand the current behaviour of your RoboHydra server.

Your first canned response

Now, let’s assume you want the path /foo to always return the following JSON data:

{"success": true,
 "results": [{"url": "http://robohydra.org",
              "title": "RoboHydra testing tool"},
             {"url": "http://en.wikipedia.org/wiki/Hydra",
              "title": "Hydra - Wikipedia"}]

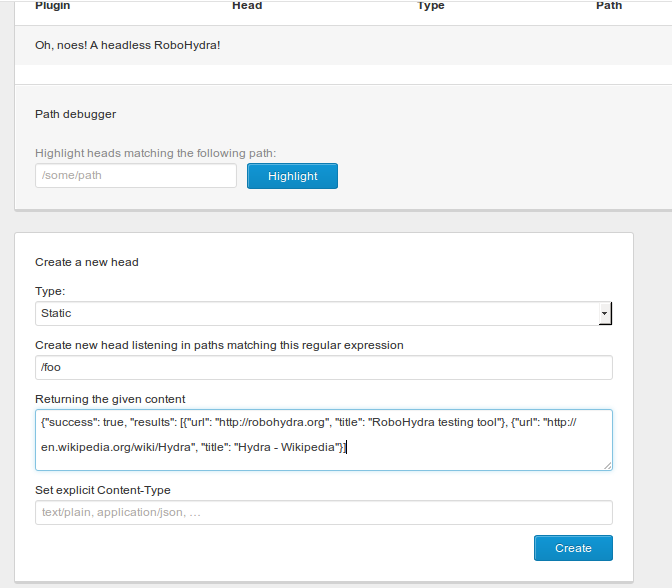

You can do that very easily: simply go to the admin interface, find the “Create a new head” section at the bottom and type the path and the content in the appropriate fields, and click on “Create”. Don’t worry about the “Content-Type” field: by default, if the content can be parsed as JSON, it will be application/json.

If you now visit your new head, you should receive the above data in the response, and with the correct Content-Type. All other paths will still yield 404. However, if you kill this RoboHydra and start a new one, that head will be lost. Don’t worry though, you can easily write your heads in files (plugins) so you can load them whenever you need them.

Your first plugin

So far we have seen how to create “heads” dynamically in our RoboHydra server, by using the admin interface. A “head” is an object that monitors a given URL path pattern and defines how to process requests for those URLs (eg. always return a given response for the URL path /orders/.*, or alternatively return 404 and 200 for the URL /rest/widgets/3).

As there are many heads that you want to keep for later and use over and over, RoboHydra allows you to write “plugins”, which are files describing one or more heads.

For example, if you wanted to keep the above head for later, you could write a simple plugin like this:

var RoboHydraHeadStatic = require("robohydra").heads.RoboHydraHeadStatic;

exports.getBodyParts = function(conf) {
    return {
        heads: [
            new RoboHydraHeadStatic({
                path: '/foo',
                content: {
                    "success": true,
                    "results": [
                        {"url": "http://robohydra.org",
                         "title": "RoboHydra testing tool"},
                        {"url": "http://en.wikipedia.org/wiki/Hydra",
                         "title": "Hydra - Wikipedia"}
                    ]
                }
            })
        ]
    };
};

In this case, our first plugin has a single head of type RoboHydraHeadStatic. You can use the RoboHydraHeadStatic class when you only want to return a certain static response regardless of the incoming request. Now, save the above text in a file robohydra/plugins/firstplugin/index.js and start RoboHydra like so:

robohydra -n -P firstplugin

A head listening in /foo will be available from the start. Another possibility would be to create a configuration file (say, first.conf) with the following contents:

{"plugins": ["firstplugin"]}

And then start RoboHydra as robohydra first.conf. The end result is the same. With a configuration file, however, is easier to change the list of plugins to be loaded, and you can configure other things like SSL certificates (in the case you want RoboHydra to server HTTPS requests). See the configuration file documentation for more information.

More flexibility in request handling

As sending only static, fixed responses is no fun, you can also write your own Javascript functions to process the requests and build the responses. For example, say you want to wait for one second before you send the response back to the client. To do that, modify the require line and heads section in your plugin to add a second head like so:

var RoboHydraHeadStatic = require("robohydra").heads.RoboHydraHeadStatic,
    RoboHydraHead       = require("robohydra").heads.RoboHydraHead;

exports.getBodyParts = function(conf) {
    return {
        heads: [
            new RoboHydraHeadStatic({
                // ... Same as before ...
            }),


            new RoboHydraHead({
                path: '/slow',
                handler: function(req, res) {
                    setTimeout(function() {
                        res.send("Some slow response");
                    }, 1000);
                }
            })
        ]
    };
};

Accessing the request data

Now let’s say that we want to configure how slow the request is going to return, by specifying URLs like /slow/1000, /slow/5000 and so on. In this case, RoboHydra allows you to specify URL paths like /slow/:millis which will match any URL path fragment after /slow. The following handler function will allow you to configure the wait in this way:

new RoboHydraHead({
    path: '/slow/:millis',
    handler: function(req, res) {
        setTimeout(function() {
            res.send("Some slow response");
        }, req.params.millis);
    }
})

But what about URLs like /slow/?amount=3000? In that case, you have the GET parameters avaiable as properties of the object req.queryParams (req.getParams in RoboHydra 0.2 and lower). Similarly, the POST parameters and the raw body of the request are available as req.bodyParams and req.rawBody respectively. The latter object is of type Buffer (see the Node documentation). This head would match the GET-parameter-style URLs:

new RoboHydraHead({
    path: '/slow',
    handler: function(req, res) {
        setTimeout(function() {
            res.send("Some slow response");
        }, req.queryParams.millis || 1000);
    }
})

Other handy kinds of heads

Apart from RoboHydraHeadStatic and the generic RoboHydraHead, there are other, more specific head classes. In this section we will see two of them in action: RoboHydraHeadFilesystem and RoboHydraHeadProxy. As you can guess, the former serves static files from the filesystem, while the latter proxies requests to another URL.

One of the many ways in which you can combine these two heads is having a RoboHydra that proxies everything to another server, except certain paths that contain your own, local copies of some files. This can be useful when you have frontend developers working on some site: if you don’t want to make them have their own local installation of the backend, they can simply have a copy of the CSS and Javascript files they maintain, and use RoboHydra to serve their local files for requests to, say, /css and /js while it proxies all the rest to the common, development server.

Let’s demonstrate this with a simple example. Let’s say you use DuckDuckGo as your search engine, but want to keep Adam Yauch’s tribute logo as the homepage logo. One way to do this is to grab a copy of the logo (the one linked in the previous sentence) and the search box icon, save them in a folder fake-assets and write this simple plugin:

var RoboHydraHeadFilesystem = require("robohydra").heads.RoboHydraHeadFilesystem,
    RoboHydraHeadProxy      = require("robohydra").heads.RoboHydraHeadProxy;

exports.getBodyParts = function(conf) {
    return {
        heads: [
            new RoboHydraHeadFilesystem({
                mountPath: '/assets',
                documentRoot: 'fake-assets'
            }),

            new RoboHydraHeadProxy({
                mountPath: '/',
                proxyTo: 'http://duckduckgo.com'
            })
        ]
    };
};

Note that the first head that matches the request dispatches it, so the order is important! Now save the plugin as robohydra/plugins/ddg/index.js and start RoboHydra as robohydra -n -P ddg. You should see the DuckDuckGo page completely functional, but with the Adam Yauch logo.

Now you know all the basic functionality RoboHydra offers. If you want more information, you can read and follow the advanced tutorial.
